Segmented flow analysis
Air injection and segmentation for batch analysis, reducing interaction between samples.
Continuous flow analysis
CFA-1100
Batch analysis. In continuous flow.
CFA-1100 Automated multi-channel continuous flow analyzer
CFA-1100 / SFAOverview
From sample to result. A clearer analytical workflow.
Designed for laboratory batch analysis, using segmented flow analysis (SFA), automatic sampling, modular sample treatment and a multi-channel data workstation. Analysis modules are selected for the test method; unattended operation and automatic dilution systems are available as options.
S01 · Physical page 3–6Modular sample treatment

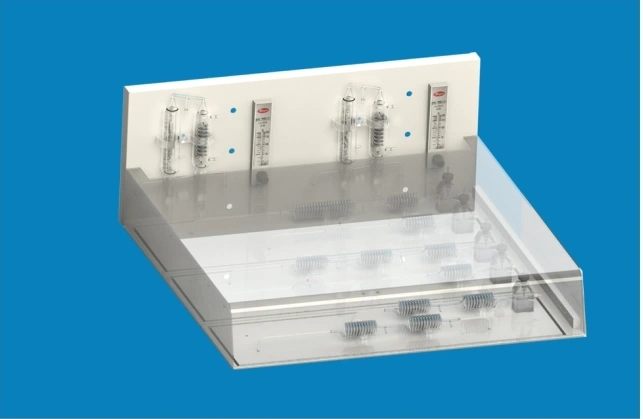

Distillation, UV digestion, membrane filtration and online digestion, selected by method.

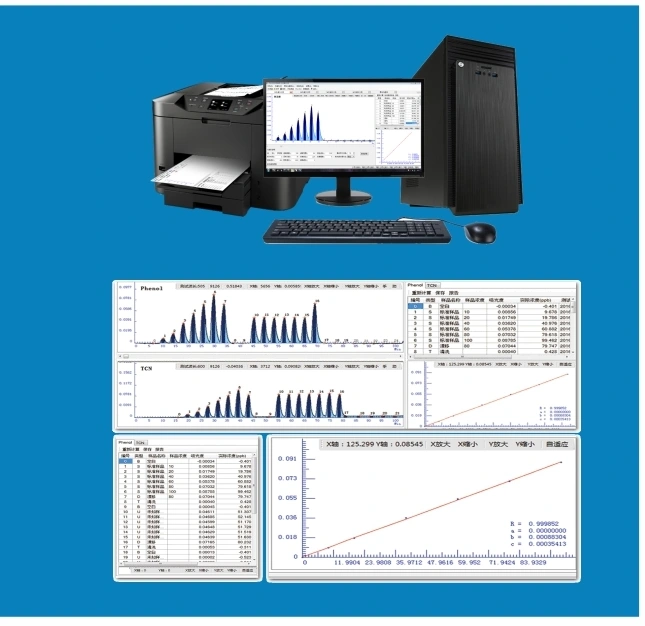

Multi-channel data handling
The workstation connects instrument control, acquisition, analysis and reporting.
Flow analysis · Support and customer applications
Pre-prepared reagent packs
Reagent packs for flow analysis are supplied pre-prepared, so users do not need to formulate the reagents themselves, reducing preparation work.
Refer to the supplied instructions for supported tests and use.
PRODUCT MODULES
Modular by design. Connected at every step.
Select modules for the test method. Modules shown are not all standard equipment.

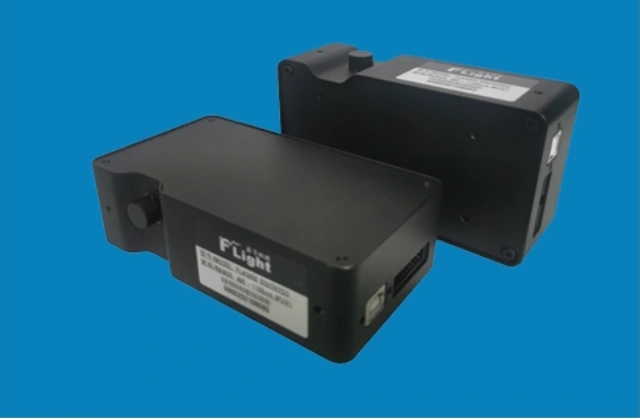

CCD full-spectrum digital detector
Software-controlled wavelength switching without optical filters, with a mechanical grating. Multiple light sources and flow-cell specifications are available.
S01 · Physical page 5CFA-1100 / Configuration & technical details
CFA-1100Configuration & technical details
Select modules for the test method. Modules shown are not all standard equipment.
| Parameter | Value / configuration | Conditions & notes | Source |
|---|---|---|---|

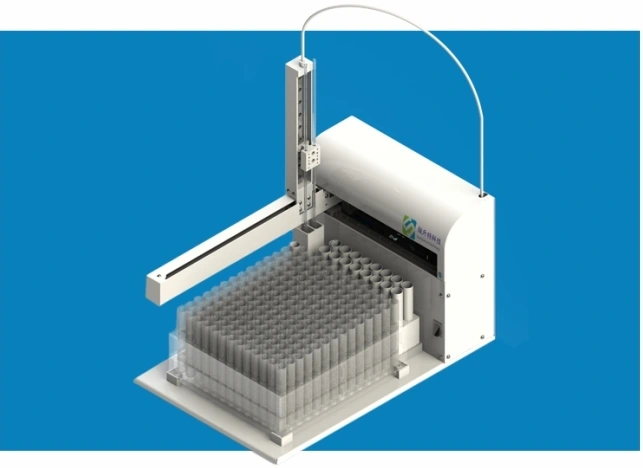

| Sampler · standard positions | 10–40 | Depending on configuration | S01 · 5 |
| Sampler · sample positions | 180–540 | Depending on configuration | S01 · 5 |
| Sampling time | 1–999 s | Sampler setting | S01 · 5 |
| Sampling needle mode | Dual needle | Optional single or triple needle | S01 · 5 |

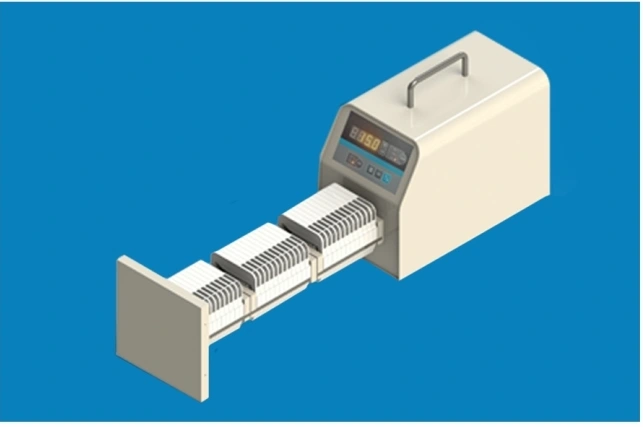

| Pump speed | 0–100 | Brochure speed range; resolution 0.1 rpm | S01 · 5 |
| UV digestion tube | 2 mm internal diameter; length can exceed 5 m | UV digestion module; special quartz | S01 · 4 |

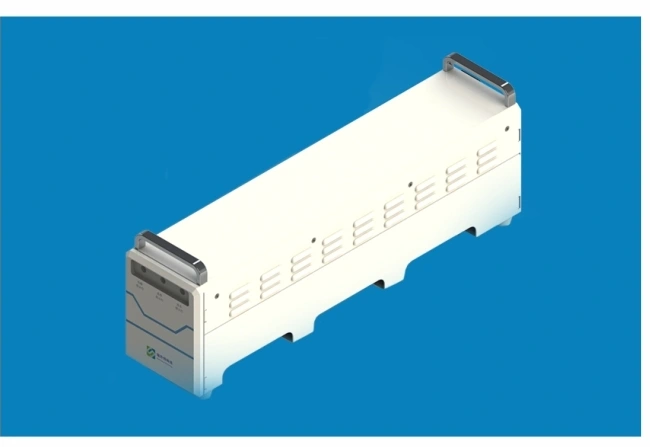

| Unattended operation unit | 6, 12, 18 and other channel options | Optional unit; not the analyzer channel count | S01 · 6 |
| Workstation reports | PDF / EXCEL | PDF reports and EXCEL tables as in brochure | S01 · 6 |
Transcribed by module from brochure pages 4–6. Select the configuration according to the analytical method.
Download product brochure · English PDF ↓Applications
Real applications. Real laboratory needs.
Environmental & water analysis
The CFA-1100 brochure lists drinking water, surface water, seawater, wastewater and process water. Select analysis modules for the specific test.
CFA-1100 ↗Projects
Projects ↗Project delivery and acceptance
Projects
Projects ↗From analytical needs to real applications.
Anhui Environmental Monitoring Central Station
Purchased three flow analyzers for river pollution-source monitoring.
Anyang Center for Disease Control and Prevention
Purchased a continuous flow analyzer for routine drinking-water analysis, replacing traditional manual methods.
Hefei University of Technology
In August 2016, the environmental engineering laboratory procured environmental monitoring and analytical equipment, including a continuous flow analyzer, through public tender.
Zhongce & Tongbiao technical testing company
Procured monitoring and analytical equipment in 2017 for product R&D and used a continuous flow analyzer for batch samples.
CFA-1100
Manufacturer-listed users
Selected CFA-1100 entries from the manufacturer's user directory. Institution names are retained as written in the Chinese source; the full directory also covers other models.
CFA-1100
安徽省环境监测站
Physical page 1CFA-1100江西省环境监测站
Physical page 1CFA-1100中国食品药品检验研究院
Physical page 5CFA-1100安阳市疾病预防控制中心
Physical page 5CFA-1100乐山市疾病预防控制中心
Physical page 5CFA-1100巢湖市巢湖管理局
Physical page 10CFA-1100禹州市供水有限公司
Physical page 10CFA-1100合肥工业大学
Physical page 11CFA-1100中国地质大学（武汉）
Physical page 11CFA-1100河南中测技术检测服务有限公司
Physical page 12CFA-1100中科检测技术服务（广州）股份有限公司
Physical page 12CFA-1100内蒙古水利科学研究院
